MASI20 INSTALLATION TECHNOLOGY

Distributor AS-I and extern power, 1 potential
Tuotenro.: 55611
Paino: 0.1 kg
Alkuperämää:  CZ
Loppu varastosta - Kysykää tuotteen saatavuutta asiakaspalvelusta
 Tuotevertailu
Listahinta / kpl:

Kuvaus

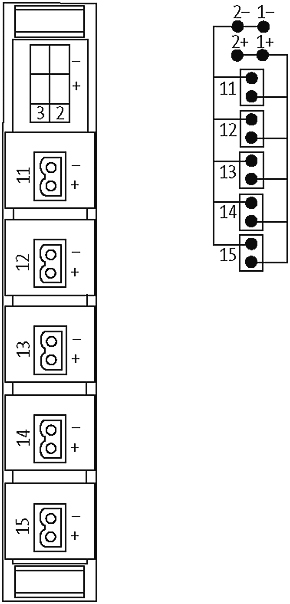

5 ports, universal
1 potential
5 plug terminals included
Certificates as JSON - filtered

Technical Data
Operating voltage max. 36 V DC
Current per connection max. 8 A
Total current max. 12 A
General data
Mounting method DIN-rail mountable (EN 60715)
Temperature range -20...+70 °C
Test isolation voltage AS-Interface/Power 200 V, Power/Power 50 V (EN 60664-1)
Protection IP20
Connection Screw terminal: single wire (0.2...2.5 mm²), stranded wire (0.2...1.5 mm²)
Dimensions H×W×D 61×25×152 mm
Article No. 55611

EAN 4048879050463
eClass 27279219
Pakkauskoko 1
Tullinumero 85369010


Tuotetietoja:
  • Lataus Datalehti
  • Lataus Approval: UL Registered CA 55611_E201820-NRAQ8_urc_z_b.pdf
  • Lataus Approval: UL Registered US 55611_E201820-NRAQ2_ur_z_b.pdf
  • Lataus Construction files: DXF 55611_dxf_x_a.zip
  • Lataus Construction files: P8 55611_p8_2_30.zip
  • Lataus Construction files: P8 55575_p8_2_50.zip
  • Lataus Construction files: STP 55611_stp_x_a.zip
  • Lataus Document: Installation guide 55611_ina_5_12.pdf
  • Lataus Information: Certificate of conformity Murrelektronik GmbH 16-12.20_(2) China RoHS 2 20EEP_DoC_z_b.pdf
  • Lataus Information: Certificate of conformity Murrelektronik GmbH 13-11.20_(2) RoHS&REACh exception 7cI_DoC_z_c.pdf
  • Lataus Information: Certificate of conformity Murrelektronik GmbH 20-10.21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Lataus Information: Certificate of conformity UKCA 55611_18-05.15_uk_z_a.pdf
  • Lataus Information: EU declaration of conformity 55611_18-05.15_ce_z_a.pdf
  • Lataus Information: MTTF Report 55611_SN29500(40°C)-BerechnungV1.4_mttf_p_a.pdf
