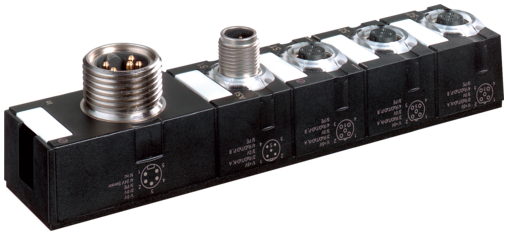

AS-I AND 2X AUX. POWER DISTRIBUTER FOR MASI68
Tuote voi erota kuvan tuotteesta

AS-I AND 2X AUX. POWER DISTRIBUTER FOR MASI68

Tuotenro.: 56454
Paino: 0.18 kg
  Saatavilla
 Tuotevertailu
Listahinta / kpl:

Voisit olla kiinnostunut myös näistä

MASI68 passive distribution box
2× Aux. Power
7/8"
Connection cables are in the online shop under "Connection Technology". Housing fully potted.
System connection
Communication and module supply via AS-Interface system connection
Connections
Fieldbus A-coded
I/O ports M12, 5-pole
General data
Protection IP68
Mounting method 2-hole screw mounting
Temperature range -20...+60 °C (storage temperature -20...+70 °C)
Dimensions H×W×D 151×30×34.5 mm
Technical Data
Bus voltage (AS-Interface) 26.5...31.6 V DC
External supply 24 V DC external (18...30.2 V DC) EN 61131-2, 2× separately aux power
Current via M12 port max. 4 A
Total current max. 2× 8 A
Kaupalliset tiedot
Alkuperämää DE
EAN 4048879373517
eClass 27279219
Pakkauskoko 1
Tullinumero 85176200

Tuotetietoja:
  • Lataus Datalehti
  • Lataus Approvals and certificates 56454_E201820-NRAQ7_ulc_z_a.pdf
  • Lataus Approvals and certificates 56454_E201820-NRAQ_ul_z_a.pdf
  • Lataus Approvals and certificates 56454_03-07.12_ce_z_a.pdf
  • Lataus China RoHS information EPUP-20_CHR_x_1.pdf
  • Lataus Drawing Files 56454_dxf_x_a.zip
  • Lataus Drawing Files 56454_p8_2_50.zip
  • Lataus Drawing Files 56454_stp_x_a.zip
  • Lataus Installation Instructions 56454_ina_6_11.pdf
  • Lataus Manuals 56430_hdb_x_29.zip
ASI
cULus
