MTL 1-PHASE SAFETY TRANSFORMER 86456
Tuote voi erota kuvan tuotteesta

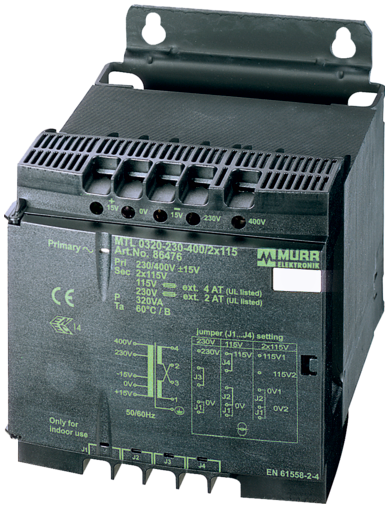

MTL 1-PHASE SAFETY TRANSFORMER

P: 320VA IN: 230/400VAC +/- 15VAC OUT: 2x24VAC

Tuotenro.: 86456
Paino: 7.18 kg
Alkuperämää:  CZ
Kysykää tuotteen saatavuutta asiakaspalvelusta
Find similar Product
Tee kysymys
 Suositeltu tuote
 Tuotevertailu
Listahinta / kpl:
Lataa Easy-Import-Export

Kuvaus

Single-phase safety transformer
320 VA
Isolation class T 60/B
Condensation not permitted

Electrical data | Supply
Power frequency 50 ... 60 Hz
Electrical data | Input
Input voltage 1 AC 230 V
Input voltage 1 AC min. 195,5 V
Input voltage 1 AC max. 264,5 V
Input voltage 2 AC 400 V
Input voltage 2 AC min. 340 V
Input voltage 2 AC max. 460 V
Current input at input voltage 1 1,62 A
Current input at input voltage 2 0,94 A
Inrush current at input voltage 1 13,1 A
Inrush current at input voltage 2 7,57 A
Short-circuit current at input voltage 1 34,2 A
Short-circuit current at input voltage 2 19,7 A
Electrical data | Output
Output voltage 1 × 24 / 1 × 48 / 2 × 24 V AC
Output voltage AC 1 48 V
Output voltage AC 2 24 V
Output voltage adjustable yes
Power rating AC max. 320 VA
Diagnostics
Status indication LED green
Device protection | Electrical
Insulation test voltage input - output 5,1 kV
Mechanical data | Mounting data
Suitable for mounting type Schlüssellochaufhängung

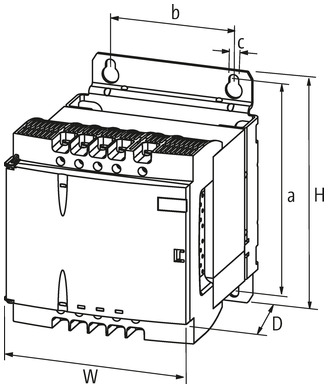

Mounting dimension a 136 mm
Mounting dimension b 82 mm
Mounting dimension c 6,5 mm
Height 153 mm
Width 123 mm
Depth 160 mm
Diameter bore 6,5 mm
Length bore 11 mm
Environmental characteristics | Climatic
Operating temperature min. -20 °C
Operating temperature max. 60 °C
Conformities, approvals, certificates
Product standard EN 61558-2-4, EN 61558-2-6, EN 62041 category 0

Connection types
Connection type 1 Input
Connection type 2 Output
Connection type 1
Connection Screw terminals SK
Family construction form terminal
Gender female
No. of poles 5
PIN 1 + 15 V
PIN 3 - 15 V
PIN 4 230 V
PIN 5 400 V
Connection type 2
Connection Screw terminals SK
Family construction form terminal
Gender female
No. of poles 5
PIN 1 PE
PIN 2 1
PIN 3 2
PIN 4 3
PIN 5 4

ECLASS-6.0 27031302
ECLASS-7.0 27031302
ECLASS-8.0 27031302
ECLASS-9.0 27031302
ETIM-5.0 EC002486
GTIN 4048879078290
Pakkauskoko 1
Tullinumero 85043180


Tuotetietoja:
  • Tuote-PDF
  • Construction files: P8 86456_p8_2_50.zip (50)
  • Construction files: STP 86456_stp_x_a.zip (A)
  • Document: Installation guide 86450_ina_2_10.pdf (10)
  • Document: Product data 86456_PD_X_16.zip (16)
  • Information: Certificate of conformity Murrelektronik GmbH 10-11-20_(1) RoHS REACh exception 6c_DoC_z_a.pdf (04)
  • Information: Certificate of conformity Murrelektronik GmbH 07-02-23_(5) China RoHS 2 50EEP_DoC_z_a.pdf (01)
  • Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf (01)

  • ACCESSORY FOR MTL
    ACCESSORY FOR MTL
    Bridges for MTL transformers VP10ST
