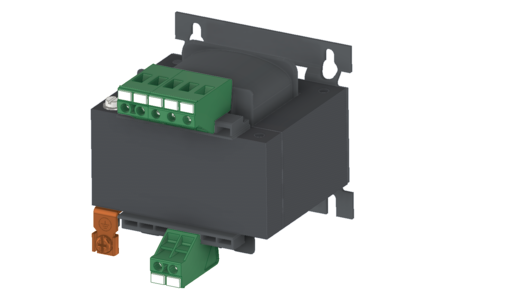

MET 1-Phase control and isolating transformer
P: 100VA IN: 230-400VAC +/- 15VAC OUT: 230VAC
| Tuotenro.: | 86422 |
| Paino: | 2.1 kg |
| Alkuperämää: | CZ |
Saatavilla
Kuvaus
The MET series is a single-phasecontrol transformer / isolating transformer: Class 1 (IP00) isolation transformer with double insulation between the primary and secondary windings for general use in industrial applications.
Tekniset tiedot
Electrical data | Supply
| Power frequency | 50/60 Hz |
|---|
Electrical data | Input
| Input voltage 1 AC | 230 V |
|---|---|
| Input voltage 2 AC | 400 V |
| Current input at input voltage 1 | 0,5 A |
| Current input at input voltage 2 | 0,29 A |
| Inrush current at input voltage 1 | 9 A |
| Inrush current at input voltage 2 | 5,2 A |
| Short-circuit current at input voltage 1 | 6,5 A |
| Short-circuit current at input voltage 2 | 3,7 A |
Electrical data | Output
| Output voltage AC | 230 V |
|---|

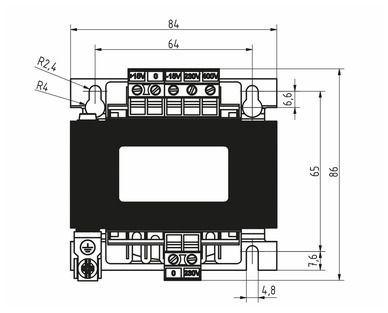

Mechanical data | Mounting data
| Mounting method | screwed |
|---|---|
| Suitable for mounting type | Schlüssellochaufhängung |
| Mounting dimension a | 65 mm |
| Mounting dimension b | 64 mm |
| Mounting dimension c | 2,4 mm |
| Height | 86 mm |
| Width | 84 mm |

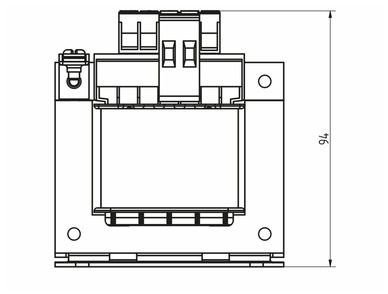

| Depth | 94 mm |
| Diameter bore | 2,4 mm |
| Length bore | 6,6 mm |
Environmental characteristics | Climatic
| Ambient temperature min. | -20 °C |
|---|---|
| Ambient temperature max. | 50 °C |
| Storage temperature min. | -30 °C |
| Storage temperature max. | 80 °C |
Conformities, approvals, certificates
| Product standard | EN 61558-1, EN 61558-2-4, EN 62041 |
|---|---|
| EMC | 2014/30/EU |
Kaupalliset tiedot
| GTIN | 4065909078884 |
|---|---|
| Pakkauskoko | 1 |
| Tullinumero | 85043180 |
