MDT THREE-PHASE CONTROL AND ISOLATION TRANSFORMER
P:2000VA IN:3x400VAC OUT:3x400VAC
| Tuotenro.: | 866086 |
| Paino: | 21 kg |
| Alkuperämää: | CZ |
Saatavilla
Kuvaus

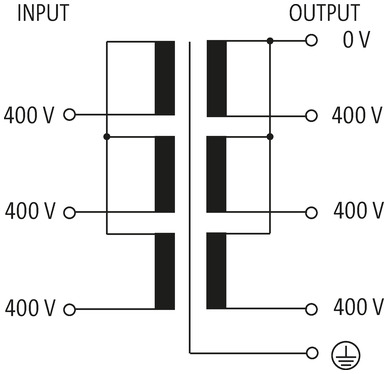

3-phase isolation transformer
2000 VA
Isolation class T 40/B
Other voltages on request.
2000 VA
Isolation class T 40/B
Other voltages on request.
Tekniset tiedot
Electrical data | Supply
| Power frequency | 50 ... 60 Hz |
|---|
Electrical data | Input
| Voltage input AC | 400 V |
|---|---|
| Input voltage AC min. | 380 V |
| Input voltage AC max. | 420 V |
| Input current AC (3-phase) | 3,1 A |
| Max. inrush current | 81 A |
| Short-circuit current | 103 A |
| Phase number input | 3 |
Electrical data | Output
| Output voltage | 3× 400 V AC |
|---|---|
| Output voltage AC | 400 V |
| Output voltage adjustable | no |
| Power rating AC max. | 2000 VA |
Device protection | Electrical
| Insulation test voltage input - output | 5,8 kV |
|---|
Mechanical data | Mounting data
| Mounting method | screwed |
|---|---|
| Mounting dimension a | 115 mm |
| Mounting dimension b | 190 mm |
| Mounting dimension c | 11 mm |
| Height | 141 mm |
| Width | 240 mm |
| Depth | 265 mm |
| Diameter bore | 11 mm |
| Length bore | 15 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -20 °C |
|---|---|
| Operating temperature max. | 40 °C |
| Storage temperature min. | -20 °C |
| Storage temperature max. | 80 °C |
Conformities, approvals, certificates
| Product standard | EN 61558-1, EN 61558-2-4, EN 62041 category 0 |
|---|
Kaupalliset tiedot
| ECLASS-6.0 | 27031301 |
|---|---|
| ECLASS-6.1 | 27031301 |
| ECLASS-7.0 | 27031301 |
| ECLASS-8.0 | 27031301 |
| ECLASS-9.0 | 27031301 |
| ECLASS-10.1 | 27031301 |
| ECLASS-11.1 | 27031301 |
| ECLASS-12.0 | 27031301 |
| ETIM-5.0 | EC002485 |
| GTIN | 4048879073905 |
| Pakkauskoko | 1 |
| Tullinumero | 85043200 |
