MCS-B POWER SUPPLY 1-PHASE,

IN: 90-265VAC OUT: 24V/1,3ADC
Tuotenro.: 85161
Paino: 0.199 kg
Alkuperämää:  CZ
Saatavilla
 Tuotevertailu
Listahinta / kpl:
Lataa Easy-Import-Export

Kuvaus

INPUT: 90...265 V AC
OUTPUT: 24 V DC +3/-1%
Current: 1.3 A
Certificate
Certificate
Certificate
Certificate

Input
Input voltage 90...265 V AC/110...300 V DC
Primary fusing external max. 10 A
Input current 0.65 A (100 V AC); 0.37 A (230 V AC)
Inrush current after 1 ms max. 20 A
Frequency 50...60 Hz
Output
Output voltage 24 V DC (SELV), ±1%; 22...28 V adjustable
LED display LED (green) for output voltage
Output current 1.3 A (+60 °C, Uin min.170 V AC)
Mains failure bridging time min. 15 ms (100 V AC); min. 100 ms (230 V AC)
Ripple max. 50 mV eff/rms
Spikes max. 120 mV ss/pp
Unit protection short-circuit and overload protected
Parallel usage/serial usage max. 5 units/max. 2 units
General data
Standards IEC 61010-2-201, EN 61204-3, EN 55022 B, EN 61000-3-2
Mounting method DIN-rail mountable TH35 (EN 60715)
Temperature range -25...+40 °C, ...+50 °C derating (storage temperature -25...+85 °C)
Relative humidity 5...95%, no condensation
Efficiency 82%

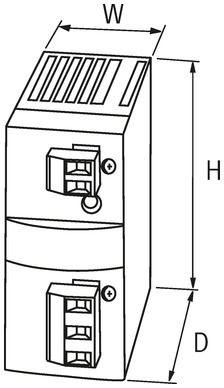

Dimensions H×W×D 76×38×87.5 mm

ECLASS-6.0 27049002
ECLASS-6.1 27049002
ECLASS-7.0 27049002
ECLASS-8.0 27049002
ECLASS-9.0 27040701
ECLASS-10.1 27040701
ECLASS-11.1 27040701
ECLASS-12.0 27040701
ETIM-5.0 EC002540
EAN 4048879080385
Pakkauskoko 1
Tullinumero 85044095


Tuotetietoja:
  • Lataus Tuote-PDF
  • Lataus Approval: UL Listed CA 85161_E222272-NMTR7_ulc_z_a.pdf
  • Lataus Approval: UL Listed US 85161_E222272-NMTR_ul_z_b.pdf
  • Lataus Approval: UL Registered CA 85161_E213413-QQGQ8_urc_z_b.pdf
  • Lataus Approval: UL Registered US 85161_E213413-QQGQ2_ur_z_b.pdf
  • Lataus Construction files: DXF 85161_dxf_x_a.zip
  • Lataus Construction files: STP 85161_stp_x_a.zip
  • Lataus Document: Installation guide 85161_ina_4_17.pdf
  • Lataus Information: Certificate of conformity Murrelektronik GmbH 05-02-23_(2) China RoHS 2 20EEP_DoC_z_a.pdf
  • Lataus Information: Certificate of conformity Murrelektronik GmbH 13-11-20_(2) RoHS REACh exception 7cI_DoC_z_c.pdf
  • Lataus Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Lataus Information: Certificate of conformity UKCA 85161_24-10.20_uk_z_a.pdf
  • Lataus Information: EU declaration of conformity 85161_24-10.20_ce_z_d.pdf
  • Lataus Information: MTBF Report 85161_SN29500(40°C)-BerechnungV1.4_mtbf_p_a.pdf

  • For side mounting of MCS 2,5 and MCS-B 0,6...2,5A
