M8 male 90° with cable, 180°
PUR 5x0.25 bk UL 5m
| Tuotenro.: | 7000-08912-6950500 |
| Vaihtoehtoinen tuote: | 7000-08912-6950750 |
| Paino: | 0.085 kg |
| Alkuperämää: | CZ |
Saatavilla
Kuvaus

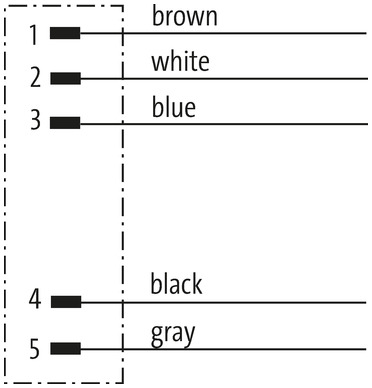

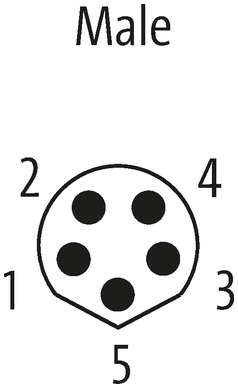

Male 90°
M8, 5-pole
B-coded
with cable sleeves
Attention: Contact carrier turned to 180°!
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Tekniset tiedot
| Cable length | 5 m |
|---|
Side 1
| Tightening torque | 0,4 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Coating contact | gold plated |
| Family construction form | M8 |
| Material contact | Copper alloy |
| Material | PUR |
| No. of poles | 5 |
| Width across flats | SW9 |
Electrical data | Supply
| Operating voltage AC max. | 30 V |
|---|---|
| Operating voltage DC max. | 30 V |
Installation | Connection
| Mounting set | M8 x 1 |
|---|---|
| Mating cycles min. | 100 |
Device protection | Electrical
| Pollution Degree | 3/2 |
|---|---|
| Insulation resistance min. | 100 MΩ |
Mechanical data | Material data
| Coating of fitting | nickel plated |
|---|---|
| Material screw connection | Zinc die-casting |
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 80 °C |
| Additional condition temperature range | depending on cable quality |
Cable data
Cable
| Cable identification | 695 |
|---|---|
| Material wire | Cu wire, bare |
| Resistor (core) | max. 58 Ω/km (20 °C) |
| Single wire Ø (core) | 0.1 mm |
| Construction (core) | 32× 0.1 mm (multi-strand wire class 6) |
| Diameter (core) | 5× 0.25 mm² |
| AWG | similar to AWG 24 |
| Material wire isolation | PP |
| Wire-Ø incl. isolation | 1.2 mm ±5% |
| Stranding combination | 5 wires twisted around central filler |
| Shield | no |
| Material jacket | PUR |
| Outer-Ø (jacket) | 4.7 mm ±5% |
| Color jacket | black |
| Nominal voltage | 300 V |
| Test voltage | 3000 V AC |
| Temperature range (fixed) | -25...+80 °C |
| Temperature range (mobile) | -10...+80 °C |
| Bend radius (moving) | 7.5× outer Ø |
| No. of bending cycles (C-track) | max. 5 Mio. (25 °C) |
| Travel speed (C-track) | max. 3 m/s |
| Acceleration (C-track) | max. 5 m/s² |
Kaupalliset tiedot
| ECLASS-6.0 | 27279218 |
|---|---|
| ECLASS-7.0 | 27279218 |
| ECLASS-8.0 | 27279218 |
| ECLASS-9.0 | 27060311 |
| ECLASS-10.1 | 27060311 |
| ECLASS-11.1 | 27060311 |
| ECLASS-12.0 | 27060311 |
| ETIM-5.0 | EC001855 |
| GTIN | 4048879783330 |
| Pakkauskoko | 1 |
| Tullinumero | 85444290 |
