M12 female 0° A-cod.with cable  7000-15101-1381600
Tuote voi erota kuvan tuotteesta

M12 female 0° A-cod.with cable

PUR (4x0.5C+2x0.5)C shielded ye 16m
Tuotenro.: 7000-15101-1381600
Paino: 1.99 kg
Alkuperämää:  DE
Kysykää tuotteen saatavuutta asiakaspalvelusta
 Tuotevertailu
Listahinta / kpl:
Lataa Easy-Import-Export

Kuvaus


Cube67
Female straight
M12, 6-pole
Actuator supply external
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Certificate

Cable length 16 m
Side 1
Tightening torque head 1 0,6 Nm
Mounting method inserted, screwed
Family form head 1 M12
Thread M12 x 1
Material head 1 PUR
Width across flats head 1 SW13
Degree of protection (EN IEC 60529) IP66K, IP67
Electrical data | Supply
Operating voltage AC max. 60 V
Operating voltage DC max. 60 V
Current operating per contact max. 4 A
Installation | Connection
Mounting set M12 x 1
Device protection | Electrical
Protection degree additional condition inserted, screwed
Mechanical data | Material data
Coating of fitting nickel plated
Zinc die-casting
Mechanical data | Mounting data
Mounting method inserted, screwed, Shaking protection
Environmental characteristics | Climatic
Operating temperature min. (dynamic) -5 °C
Min. operating temperature (static) -40 °C
Operating temperature max. (dynamic) 80 °C
Max. operating temperature (fixed) 80 °C

Cable
No./diameter of wires 4× 0.5 + 2× 0.5 mm²
Wire isolation PP (br, wh, bl, bk, gr, pk)
C-track properties 5 Mio.
Outer Ø 8.0 mm ±5%
Cable identification 138
Cable number 138
Approval (cable) CE conform
Cable weight [g/m] 123,2 g
Material wire Cu wire, bare
Resistor (core) max. 39 Ω/km (20 °C)
Single wire Ø (core) 0.15 mm
Construction (core) 28× 0.15 mm (multi-strand wire class 6)
Diameter (core) 4× 0.5 + 2× 0.5 mm²
AWG similar to AWG 20
Material wire isolation PP
Material property wire insulation CFC-, halogen-, cadmium-, silicone- and lead-free
Shore hardness wire isolation 55 ±5 D
Wire-Ø incl. isolation 1.5 mm ±5%

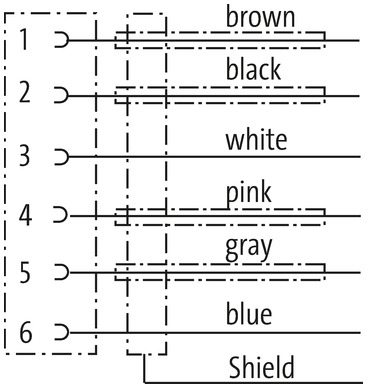

Color/numbering of wires br, bl, gr, pk, wh, bk
Shield yes
Shield (Type) Copper braid
Optical shield cover min. 85%
Material jacket PUR
Shore hardness jacket 85 ±5 A
Outer-Ø (jacket) 8.0 mm ±5%
Color jacket yellow
Jacket Color yellow
chemical resistance good resistance to oil, gasoline and chemicals (VDE 0472 Teil 803 Test B)
Nominal voltage 100 V AC
Test voltage 1200 V AC
Temperature range (fixed) -40...+80 °C
Temperature range (fixed) -40...+80 °C
Temperature range (mobile) -5...+80 °C
Temperature range (mobile) -5...+80 °C
Bend radius (moving) 10× outer Ø
Bend radius (moving) 10× outer Ø
No. of bending cycles (C-track) max. 5 Mio. (25 °C)
Travel speed (C-track) max. 3.3 m/s
Acceleration (C-track) max. 5 m/s²
Material jacket PUR

ECLASS-6.0 27279218
ECLASS-6.1 27060307
ECLASS-7.0 27060307
ECLASS-8.0 27060307
ECLASS-9.0 27060307
ECLASS-10.1 27060307
ECLASS-11.1 27060307
ECLASS-12.0 27060307
ETIM-5.0 EC001855

GTIN 4048879313056
Pakkauskoko 1
Tullinumero 85444290
