Valve plug MDC06-4s / MSUD valve A-18mm Xtreme

PUR 2x0.75 bk UL/CSA+drag ch. 0.6m
Tuotenro.: 7072-77731-7540060
Paino: 0.075 kg
Alkuperämää:  CZ
Kysykää tuotteen saatavuutta asiakaspalvelusta
 Tuotevertailu
Listahinta / kpl:
Lataa Easy-Import-Export

Kuvaus


Xtreme - Outdoor

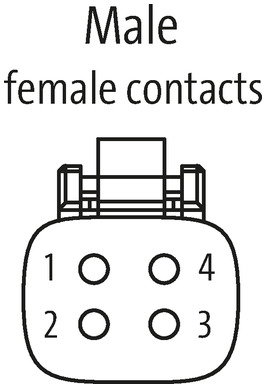

Male straight – female 90°
6...230 V AC/DC
without components
compatibel to Deutsch DT06-4S
MSUD A
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.

Cable length 0,6 m
Side 1
Mounting method inserted, screwed
Coating contact head 1 nickel plated
Family form head 1 MSUD A
Material contact Copper alloy
Number of poles head 1 4
Degree of protection (EN IEC 60529) IP65, IP66K, IP68
Side 2
Mounting method inserted, screwed
Coating contact head 2 nickel plated
Family form head 2 Amphenol AT06-4S
Material contact Copper alloy
Number of poles head 2 4
Degree of protection (EN IEC 60529) IP68
Electrical data | Supply
Operating voltage AC min. 6 V
Operating voltage AC max. 230 V
Operating voltage DC min. 6 V
Operating voltage DC max. 230 V
Current operating per contact max. 8 A
Diagnostics
Status indication LED no
Installation | Connection
Tightening torque 0,4 Nm
Mounting set M3 x 31
Device protection | Electrical
Rated surge voltage 4 kV
Material group (IEC 60664-1) I
Pollution Degree 3
Additional suppressor without components
Mechanical data | Material data
Material gasket Silicon
Material housing PA
Stainless steel 1.4305 (V2A)
Mechanical data | Mounting data
Looking techniques Snap-in connector
Environmental characteristics | Climatic
Operating temperature min. (dynamic) -25 °C
Min. operating temperature (static) -25 °C
Operating temperature max. (dynamic) 80 °C
Max. operating temperature (fixed) 80 °C

Cable
Cable identification 754
Cable Type 3 (PUR)
Approval (cable) cURus (AWM-Style 20549/10493); CE conform
Cable weight [g/m] 40,7 g
Material wire Cu wire, bare
Resistor (core) max. 26 Ω/km (20 °C)
Single wire Ø (core) 0.15 mm
Construction (core) 42× 0.15 mm (multi-strand wire class 6)
Diameter (core) 2× 0.75 mm²
AWG similar to AWG 18
Material wire isolation PP
Material property wire insulation CFC-, halogen-, cadmium-, silicone- and lead-free
Shore hardness wire isolation 70 ±5 D
Wire-Ø incl. isolation 1.7 mm ±5%
Color/numbering of wires br, bl
Stranding combination 2 wires twisted
Shield no
Material jacket PUR
Material property (jacket) CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Shore hardness jacket 90 ±5 A
Outer-Ø (jacket) 5.0 mm ±5%
Color jacket black
chemical resistance good resistance to oil, gasoline and chemicals (EN 60811-404)
thermal resistance flame-retardant according to UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Nominal voltage 300 V AC
Test voltage 2500 V AC
Current load capacity to DIN VDE 0298-4
Temperature range (fixed) -40...+80 °C, (+90 °C at max. 10 000 operating hours)
Temperature range (mobile) -25...+80 °C, (+90 °C at max. 10 000 operating hours)
Bend radius (fixed) 5× outer Ø
Bend radius (moving) 10× outer Ø
No. of bending cycles (C-track) max. 10 Mio. (25 °C)
Travel speed (C-track) max. 3 m/s
Acceleration (C-track) max. 10 m/s²
Torsion stress ±180°/m
No. of torsion cycles max. 2 Mio. (25 °C)
Torsion speed 35 cycles/min

ECLASS-6.0 27279218
ECLASS-7.0 27279218
ECLASS-8.0 27279218
ECLASS-9.0 27060311
ECLASS-10.1 27060312
ECLASS-11.1 27060312
ECLASS-12.0 27060312
ETIM-5.0 EC001855
GTIN 4048879757393
Pakkauskoko 1
Tullinumero 85444290
