M12 female 0° A-cod. IDC
3-pol., 0.5 - 1.0mm², 5,5 - 8mm
| Tuotenro.: | 7000-12631-0000000 |
| Vaihtoehtoinen tuote: | 7000-12921-0000000 |
| Paino: | 0.02 kg |
| Alkuperämää: | DE |
Loppunut varastosta – ota yhteyttä saatavuuden selvittämiseksi
Kuvaus

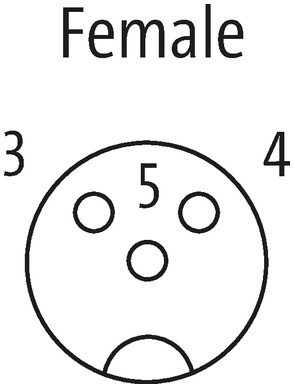

Female straight
M12, 3-pole
IDC terminals
Connection cross section: 0.5...1.0 mm²
Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
M12, 3-pole
IDC terminals
Connection cross section: 0.5...1.0 mm²
Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Tekniset tiedot
Technical Data
| Operating voltage | max. 32 V AC/DC |
|---|---|
| Operating current per contact | max. 4 A |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Connection cross section | 0.5...1.0 mm² (conductor diameter min. 0.1 mm) |
| Sealing range (cable Ø) | 5.5...8 mm |
| Protection | IP67 inserted and tightened (EN 60529) |
| Outer wire Ø | 1.6...2.0 mm |
General data
| Temperature range | -25...+85 °C |
|---|---|
| Dimensions H×W×D | 55×22×22 mm |
Kaupalliset tiedot
| ECLASS-6.0 | 27279221 |
|---|---|
| ECLASS-6.1 | 27260702 |
| ECLASS-7.0 | 27440102 |
| ECLASS-8.0 | 27440102 |
| ECLASS-9.0 | 27440116 |
| ECLASS-10.1 | 27440102 |
| ECLASS-11.1 | 27440102 |
| ECLASS-12.0 | 27440116 |
| ETIM-5.0 | EC002635 |
| EAN | 4048879201728 |
| Pakkauskoko | 1 |
| Tullinumero | 85366990 |
