M12 Power male 0° L-cod. IDC
5-pol., 0,75 - 1,5mm², 5,8 - 13,5mm, shielded
| Tuotenro.: | 7000-P4391-0000000 |
| Vaihtoehtoinen tuote: | 7000-P4591-0000000 |
| Paino: | 0.078 kg |
| Alkuperämää: | RO |
Saatavilla
Kuvaus

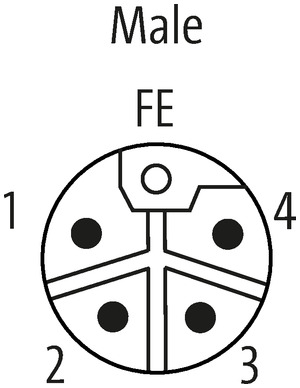

Male straight
M12, 5-pole
L-coded
Field-wireable
IDC terminals
0.75...1.5 mm²
Sealing range (cable Ø)
5.8...13.5 mm
The resistance to aggressive media should be individually tested for your application. Further details on request.
M12, 5-pole
L-coded
Field-wireable
IDC terminals
0.75...1.5 mm²
Sealing range (cable Ø)
5.8...13.5 mm
The resistance to aggressive media should be individually tested for your application. Further details on request.
Tekniset tiedot
Form
| Form | P4391 |
|---|
Technical Data
| Operating voltage | max. 63 V DC |
|---|---|
| Operating current per contact | max. 12 A |
| Coding | L-coded |
| Mating cycles | ≥ 500 |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Connection cross section | max. 1.5 mm² |
| Sealing range (cable Ø) | 5.8...13.5 mm |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Material | Zinc die casting |
| suitable for corrugated tube (internal Ø) | without |
| Compression gland | M12 (SW17) |
General data
| Material contact surface | Au |
|---|---|
| Temperature range | -40...+85 °C |
| Material contact carrier | PA |
| Product article number of manufacturer | 7000-P4391-0000000 |
|---|
Kaupalliset tiedot
| ECLASS-6.0 | 27279221 |
|---|---|
| ECLASS-7.0 | 27440104 |
| ECLASS-8.0 | 27440104 |
| ECLASS-9.0 | 27440102 |
| ECLASS-10.1 | 27440102 |
| ECLASS-11.1 | 27440102 |
| ECLASS-12.0 | 27440116 |
| ETIM-5.0 | EC001855 |
| EAN | 4048879682541 |
| Pakkauskoko | 1 |
| Tullinumero | 85366990 |
