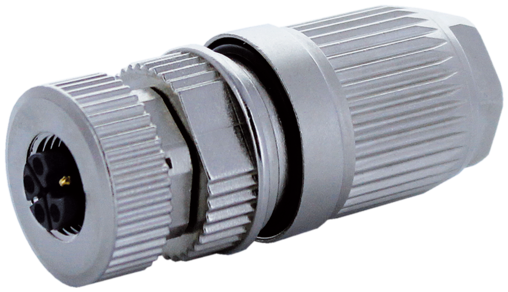

M12 Power female 0° L-cod. IDC
5-pol., 0,75 - 1,5mm², 5,8 - 13,5mm, shielded
| Tuotenro.: | 7000-P4421-0000000 |
| Vaihtoehtoinen tuote: | 7000-P4611-0000000 |
| Paino: | 0.095 kg |
| Alkuperämää: | RO |
Saatavilla
Kuvaus
M12 (female) 5-pole, L-coded
Field-wireable
IDC terminals
0.75...1.5 mm²
Sealing range (cable Ø)
5.8...13.5 mm
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Field-wireable
IDC terminals
0.75...1.5 mm²
Sealing range (cable Ø)
5.8...13.5 mm
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Tekniset tiedot
Technical Data
| Operating voltage | max. 63 V DC |
|---|---|
| Operating current per contact | max. 12 A |
| Coding | L-coded |
| Mating cycles | ≥ 500 |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Connection cross section | max. 1.5 mm² |
| Sealing range (cable Ø) | 5.8...13.5 mm |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Material | Zinc die casting |
| suitable for corrugated tube (internal Ø) | without |
| Compression gland | M12 (SW17) |
General data
| Material contact | Copper |
|---|---|
| Material contact surface | Au |
| Temperature range | -40...+85 °C |
| Material contact carrier | PA |
| Dimensions H×W×D | 53×25×25 mm |
Kaupalliset tiedot
| ECLASS-6.0 | 27279221 |
|---|---|
| ECLASS-7.0 | 27440104 |
| ECLASS-8.0 | 27440104 |
| ECLASS-9.0 | 27440102 |
| ECLASS-10.1 | 27440102 |
| ECLASS-11.1 | 27440102 |
| ECLASS-12.0 | 27440116 |
| ETIM-5.0 | EC001855 |
| EAN | 4048879682558 |
| Pakkauskoko | 1 |
| Tullinumero | 85366990 |
