IO-Link Device with one button (1 NO contact) 69200
Product may differ from image

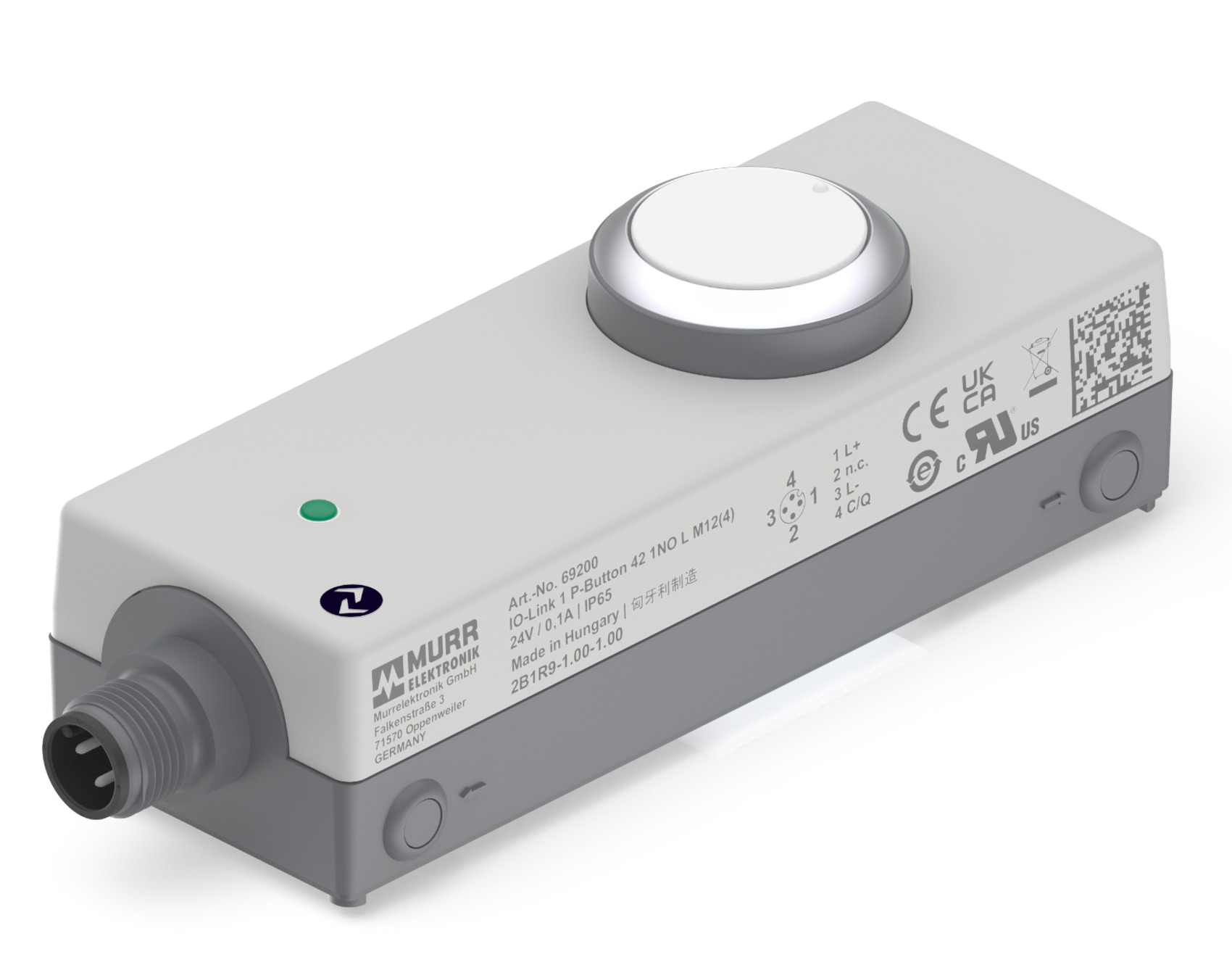

IO-Link Device with one button (1 NO contact)

RGB illumintaion
Art.No.: 69200
Weight: 0.116 kg
Country of origin:  HU
Available
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

RGB Light (flexible color selection, incl. flashing and dimmer mode)
M12 connection (4-pole, A-coded)
Housing IP65
1 button (N/O contact)
Certificate
Certificate
Certificate
Bus technologies

Connection types
Connection type 1 Port
Connection type 1
Family construction form M12
Gender male
Tightening torque 0,6 Nm
Mounting method inserted, screwed
Color contact carrier black
Coding A
No. of poles 4
PIN 1 24 V DC US (L+)
PIN 2 n.c.
PIN 3 0 V US (L-)
PIN 4 C/Q IO-Link
Commercial data | General product information
Dual-Use no
Suitable for outdoor use no
Technical data | Electrical data | Supply
Operating current max. 100 mA
Operating voltage DC 24 V
Operating voltage DC max. 28,8 V
Operating voltage DC min. 19,2 V
Technical data | Device protection | Electrical
Pollution Degree 2
Installation height max. ASL 2000 m
Degree of protection front (EN IEC 60529) IP65
Degree of protection back (EN IEC 60529) IP65
Protection class (EN IEC 61140) III
Technical data | Device protection | Mechanical
Shock resistance (EN IEC 60068-2-27) 50 g, 11 ms
Vibration resistance (EN IEC 60068-2-6) 0,35 mm (10 ... 60 Hz), 5 g (60 … 500 Hz)
Mechanical endurance 1000000 Cycles
Technical data | Industrial communication
Updateable yes
Technical data | Industrial communication | IO-Link
IO-Link cycle time min. 5 ms
IO-Link Revisions-ID V1.1.2
IO-Link transmission rate COM2 (38.4 kbit/s)
Technical data | Mechanical data
Can be illuminated yes
Shape collar round
Actuator position 1 Illuminated pushbutton
Color light gray
Color bezel colorless
Color illuminant RGB
Color front ring Metallic silver
Actuating function spring return
Type of illuminant LED
Number of control centers 1
Number of making contacts 1

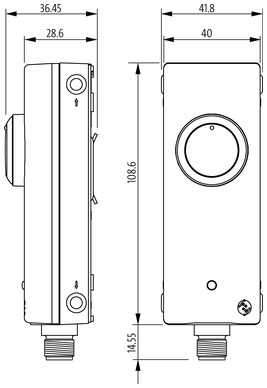

Technical data | Mechanical data | Mounting data
Height 36,45 mm
Length 123,15 mm
Width 41,8 mm
Mounting method Mounting clip
Net weight 116 g
Technical data | Environmental characteristics | Electromagnetic compatibility
Immunity to interference Immunitiy standard for industrial environments (IEC 61000-6-2)
Interference emission Emission standard for equipment in residential environments (IEC 61000-6-3)
Technical data | Environmental characteristics | Climatic
Operating temperature max. 60 °C
Operating temperature min. -30 °C
Storage temperature max. 80 °C
Storage temperature min. -40 °C
Relative humidity min. (operation) 25 %
Relative humidity max. (operation) 75 %
Conformities, approvals, certificates
CE 2011/65/EU, 2014/30/EU
REACH (EC) No 1907/2006
RoHS 2011/65/EU & 2015/863 - Exception 7(a)&7(c)I
China RoHS II SJ/T 11364-2014 - EPUP-20
UR E172109
E172109
California Proposition 65 Ni CAS No.7440-02-0
UKCA Electromagnetic Compatibility Regulations 2016, The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
WEEE 2012/19/EU | Category 5

ECLASS-6.1 27371216
ECLASS-7.0 27371216
ECLASS-8.0 27371216
ECLASS-9.0 27371216
ECLASS-10.1 27371216
ECLASS-11.1 27371216
ECLASS-12.0 27371216
customs tariff number 85365011
EAN 4065909050132
Packaging unit 0


Data Regarding Article:
  • Download Product-PDF
  • Download Approval: UL Registered CA 69200_E172109-NKCR8_urc_z_a.pdf
  • Download Approval: UL Registered US 69200_E172109-NKCR2_ur_z_a.pdf
  • Download Configuration Files: IODD 69200_KF7_x_10.zip
  • Download Construction files: DXF 69200_dxf_x_a.zip
  • Download Construction files: STP 69200_stp_x_a.zip
  • Download Document: Installation guide 69200_ina_x_10.zip
  • Download Document: User manual 69200_hdb_x_13.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 11-11-20_(7) RoHS REACh exception 7a 7cI_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 05-02-23_(2) China RoHS 2 20EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity UKCA 69200_03-11.22_uk_z_a.pdf
  • Download Information: EU declaration of conformity 69200_03-11.22_ce_z_a.pdf
