MASI20 INSTALLATION TECHNOLOGY

Distributor AS-I and extern power, 3 potentials
Art.No.: 55605
Weight: 0.087 kg
Country of origin:  CZ
Contact Us for Availability
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

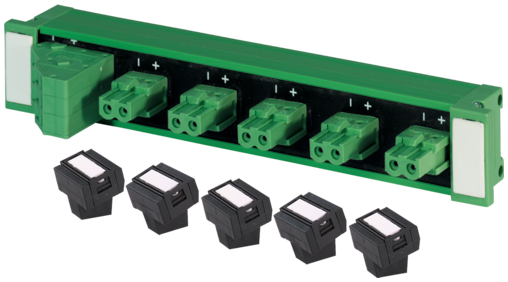

5 ports, universal
3 potentials
5 plug terminals included
Certificate
Certificate

Electrical data | Supply
Operating voltage DC max. 36 V
Current operating per port max. 8 A
Total current max. 12 A
Device protection | Electrical
Insulation strength ASI/Power 200 V
Insulation strength Power/Power (EN 60664-1) 50 V
Degree of protection (EN IEC 60529) IP20
Mechanical data | Mounting data
Mounting method geschnappt
Suitable for mounting type (EN 60715), mounting rail
Height 25 mm
Width 61 mm
Depth 152 mm
Environmental characteristics | Climatic
Operating temperature min. -20 °C
Operating temperature max. 70 °C
Conformities, approvals, certificates
Product standard EN 60664-1

Connection types
Connection type 1 11
Connection type 2 12
Connection type 3 13
Connection type 4 21
Connection type 5 31
Connection type 6 123
Connection type 1
Connection Screw terminals SK
Family construction form terminal
Gender female
Color contact carrier green
No. of poles 2
Connection type 2
Connection Screw terminals SK
Family construction form terminal
Gender female
Color contact carrier green
No. of poles 2
Connection type 3
Connection Screw terminals SK
Family construction form terminal
Gender female
Color contact carrier green
No. of poles 2
Connection type 4
Connection Screw terminals SK
Family construction form terminal
Gender female
Color contact carrier green
No. of poles 2
Connection type 5
Connection Screw terminals SK
Family construction form terminal
Gender female
Color contact carrier green
No. of poles 2
Connection type 6
Connection Screw terminals SK
Family construction form terminal
Gender female
Color contact carrier green
No. of poles 6

ECLASS-6.0 27279219
ECLASS-6.1 27279219
ECLASS-7.0 27279219
ECLASS-8.0 27279219
ECLASS-9.0 27440108
ECLASS-10.1 27440111
ECLASS-11.1 27440111
ECLASS-12.0 27440111
ETIM-5.0 EC001596
customs tariff number 85366990
GTIN 4048879050500
Packaging unit 1
