MASI65 VALVE PLUG PLUG 55680
Product may differ from image

MASI65 VALVE PLUG PLUG

2 digital inputs, 2 digital outputs
Art.No.: 55680
Weight: 0.04 kg
Country of origin:  CZ
Out of Stock - Contact Us for Availability
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

Digital inputs/outputs
DI2 - 0.2 A (M12)
DO2 - 2 A (Form A/M12)
Certificate
Certificate
Certificate
Certificate

Input
Connection 1 and 2 – M12
Sensor supply US max. 200 mA from AS-Interface (short-circuit and overload protected)
Type for 3-wire sensors or mechanical switches, PNP
Output
Supply voltage 24 V DC external (18...30.2 V DC) EN 61131-2, connection via black AS-Interface profile cable
Connection OUT 1 (Form A), OUT 2 (M12)
Total current max. 2 A (only 1 output active)
Switching current per output max. 2 A (short-circuit and overload protected)
Technical Data
Total current (AS-Interface) max. 250 mA
Bus voltage (AS-Interface) 26.5...31.6 V DC
Profile (IO/ID/ID2 code) S-3.F.E
Addressing 1...31 via address port
Pin spacing 18 mm
General data
Temperature range -20...+70 °C (storage temperature -20...+70 °C)
Protection IP67

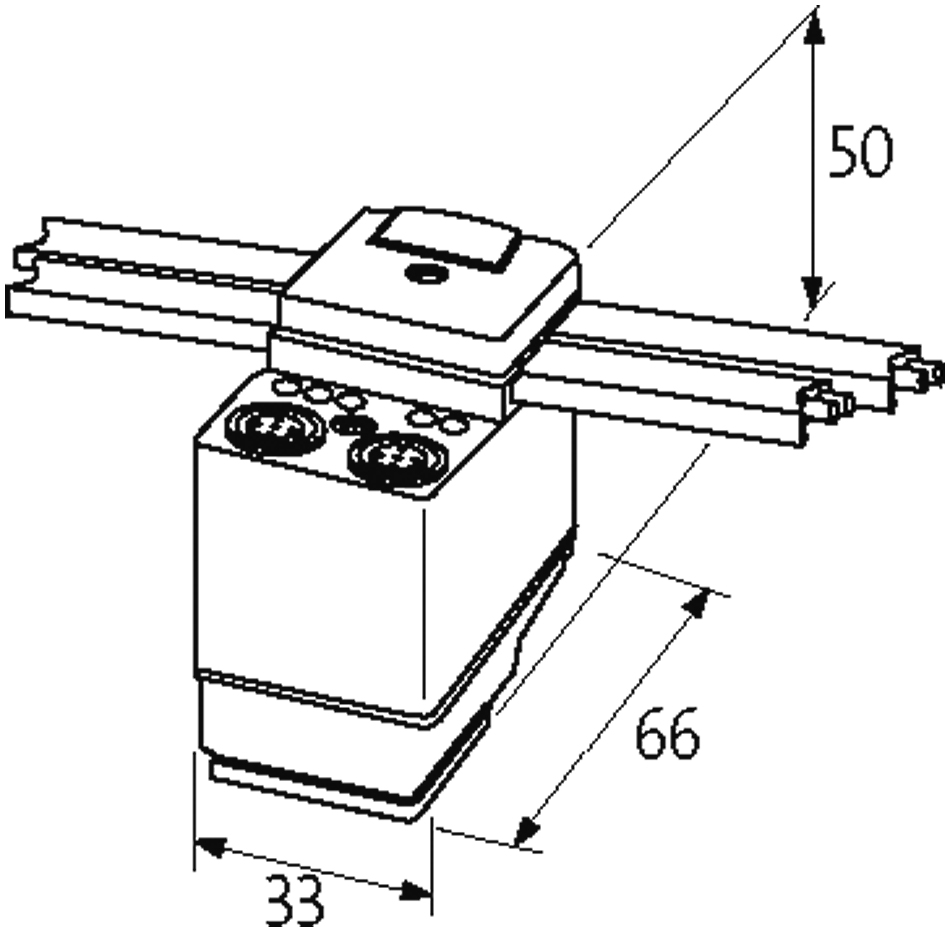

Dimensions H×W×D 50×33×66 mm
Diagnostic
Communication status via LED
Diagnostic via LED per module
Monitoring - no voltage yes

ECLASS-6.0 27242604
ECLASS-6.1 27242604
ECLASS-7.0 27242604
ECLASS-8.0 27242604
ECLASS-9.0 27242604
ECLASS-10.1 27242604
ECLASS-11.1 27242604
ECLASS-12.0 27242604
ETIM-5.0 EC001599
customs tariff number 85176200
EAN 4048879050180
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Approval: UL Registered CA 55680_E208739-NMTR8_urc_z_c.pdf
  • Download Approval: UL Registered US 55680_E205946-NMTR2_ur_z_c.pdf
  • Download Certificate: ASI  55680_pz04-32602_asi_z_d.pdf
  • Download Construction files: P8 55680_p8_2_30.zip
  • Download Document: Installation guide 55680_ina_4_22.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 13-11-20_(2) RoHS REACh exception 7cI_DoC_z_c.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 05-02-23_(2) China RoHS 2 20EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA 55680_5021-04.16_uk_z_a.pdf
  • Download Information: EU declaration of conformity 55680_5021-04.16_ce_z_b.pdf
  • Download Information: MTTF Report 55680_SN29500(40°C)-BerechnungV1.4_mttf_p_a.pdf

Data cableShow all
Sensor-actuator cableShow all

---- Plug with Thread ----
