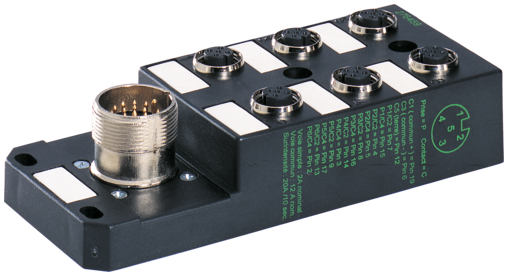

M12 DISTRIBUTOR BOX 6-WAY, 5-POLE, W/O LED, CNOMO
MVD6-U-XA M23 connector 19-pole
| Art.No.: | 276459 |
| Alternative product: | 8000-88522-0000000 |
| Weight: | 0.265 kg |
| Country of origin: | CZ |
not available
Description
6-way, 5-pole
M23 plug connection
19-pole used
without LED
Further cable lengths on request.
Technical Data
Electrical data | Supply
| Operating voltage DC | 24 V |
|---|---|
| Current operating per contact max. | 4 A |
| Total current max. | 10 A |
Industrial communication
| Number of signals per port | 2 |
|---|
Installation | Connection
| Mounting set | M12 x 1 |
|---|
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP67 |
|---|---|
| Additional condition protection degree | inserted, screwed |
Mechanical data | Mounting data
| Mounting method | Schraubgewinde |
|---|---|
| Height | 127 mm |
| Width | 54 mm |
| Depth | 25 mm |
Environmental characteristics | Climatic
| Operating temperature min. | -20 °C |
|---|---|
| Operating temperature max. | 80 °C |
Connection data
Connection type 1
| Family construction form | M12 |
|---|---|
| Gender | female |
| Color contact carrier | black |
| Coding | A |
| No. of poles | 5 |
| PIN 1 | + |
| PIN 2 | n.c. |
| PIN 3 | - |
| PIN 4 | NO |
| PIN 5 | n.c. |
Connection type 2
| Family construction form | M23 |
|---|---|
| Gender | male |
| Color contact carrier | black |
| Coding | A |
| No. of poles | 19 |
| PIN 2 | NO S 4 |
| PIN 3 | NO S 4 |
| PIN 4 | NC S 2 |
| PIN 5 | NO S 4 |
| PIN 6 | 3 (-) |
| PIN 7 | NC S 2 |
| PIN 8 | NC S 2 |
| PIN 9 | NC S 2 |
| PIN 12 | 5 (PE) |
| PIN 13 | NC S 2 |
| PIN 14 | NC S 2 |
| PIN 15 | NO S 4 |
| PIN 16 | NO S 4 |
| PIN 19 | 1 (+) |
Commercial data
| customs tariff number | 85369010 |
|---|---|
| GTIN | 4048879000253 |
| Packaging unit | 1 |
