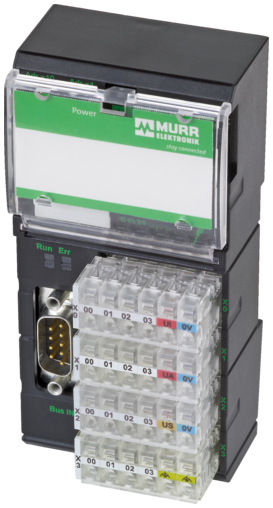

IMPACT20 CANOPEN, DIGITAL INPUT MODULE
16 digital inputs
| Art.No.: | 56904 |
| Weight: | 0.19 kg |
| Country of origin: | DE |
not available
Description
Digital inputs
DI16
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
DI16
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Technical Data
Input
| Sensor supply US | 24 V DC (EN 61131-2), max. 700 mA per module, short-circuit and overload protected |
|---|---|
| Type | for 3-wire sensors or mechanical switches, PNP |
General data
| Mounting method | DIN-rail mountable (EN 60715) |
|---|---|
| Temperature range | 0...+55 °C (storage temperature -20...+70 °C) |
| Protection | IP20 |
| Dimensions H×W×D | 117×56×47 mm |
Module supply
| Operating voltage | 24 V DC (EN 61131-2) |
|---|
Diagnostic
| Communication status | via LED |
|---|---|
| Diagnostic via BUS | per module |
| Diagnostic via LED | per module |
| Monitoring - under voltage | yes |
| Monitoring - no voltage | yes |
| Short-circuit and overload | yes |
CANopen
| Addressing | Rotary switch 1...99 |
|---|
Connections
| Fieldbus | CAN 1 Mbit/s; SUB-D9 |
|---|---|
| Sensor-system/actuator supply | 6× spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A) |
| I/O ports | 18× spring clamp plug-in terminals, max. 2.5 mm² (max. 12 A) |
Commercial data
| ECLASS-6.0 | 27242604 |
|---|---|
| ECLASS-7.0 | 27242604 |
| ECLASS-8.0 | 27242604 |
| ECLASS-9.0 | 27242604 |
| ETIM-5.0 | EC001599 |
| customs tariff number | 85389099 |
| EAN | 4048879048071 |
| Packaging unit | 1 |
Accessories
---- Terminal Strip ----
