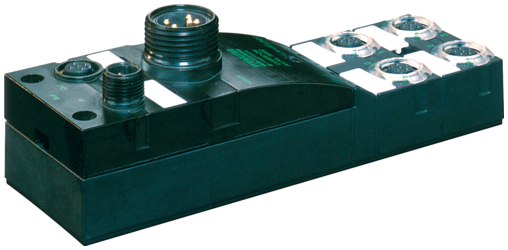

CUBE67 BUS NODES 56501
Product may differ from image

CUBE67 BUS NODES

Profibus DP
Art.No.: 56501
Alternative product:    56521
Weight: 0.45 kg
Country of origin:  CZ
Out of Stock - Contact Us for Availability
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

PROFIBUS DP
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
Certificate
Certificate
Certificate
Bus technologies

General data
Mounting method 2-hole screw mounting
Temperature range 0...+55 °C (storage temperature -20...+75 °C)
Protection IP67
Dimensions H×W×D 151×50×50.3 mm
Module supply
Operating voltage 24 V DC (EN 61131-2)
Current consumption max. 120 mA
Cube system
Module capacity max. 16
Diagnostic
Communication status via LED and BUS
Diagnostic via BUS per module and channel
Diagnostic via LED per module and channel
Monitoring - under voltage yes
Monitoring - no voltage yes
Short-circuit and overload yes
PROFIBUS
Addressing Rotary switch 0...99
Connections
Fieldbus PROFIBUS 12 Mbit/s; M12, B-coded
Sensor-system/actuator supply 7/8", 5-pole, 2× max. 8 A
Internal system connection M12, 6 pole; max. 4 A

ECLASS-6.0 27242608
ECLASS-6.1 27242608
ECLASS-7.0 27242608
ECLASS-8.0 27242608
ECLASS-9.0 27242608
ECLASS-10.1 27242608
ECLASS-11.1 27242608
ECLASS-12.0 27242608
ETIM-5.0 EC001604
customs tariff number 85389099
EAN 4048879048736
Packaging unit 1
