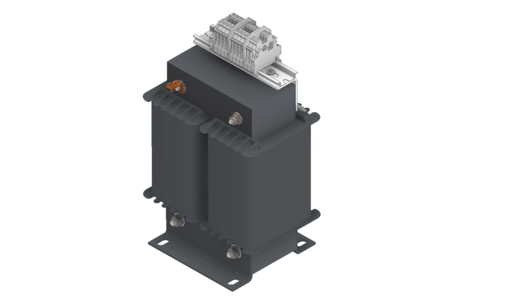

MET 1-Phase control and isolating transformer
P: 2500VA IN: 230-400VAC +/- 15VAC OUT: 230VAC
| Art.No.: | 86429 |
| Weight: | 26.9 kg |
| Country of origin: | CZ |
Available
Description

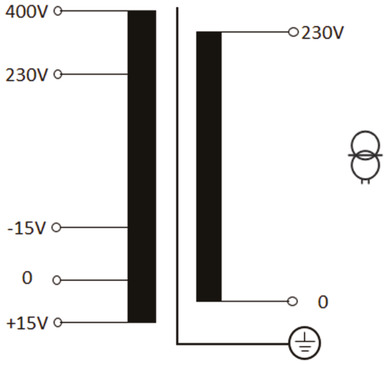

The MET series is a single-phasecontrol transformer / isolating transformer: Class 1 (IP00) isolation transformer with double insulation between the primary and secondary windings for general use in industrial applications.
Technical Data
Electrical data | Supply
| Power frequency | 50/60 Hz |
|---|
Electrical data | Input
| Input voltage 1 AC | 230 V |
|---|---|
| Input voltage 2 AC | 400 V |
| Current input at input voltage 1 | 11,4 A |
| Current input at input voltage 2 | 6,6 A |
| Inrush current at input voltage 1 | 213 A |
| Inrush current at input voltage 2 | 122 A |
| Short-circuit current at input voltage 1 | 408 A |
| Short-circuit current at input voltage 2 | 235 A |
Electrical data | Output
| Output voltage AC | 230 V |
|---|

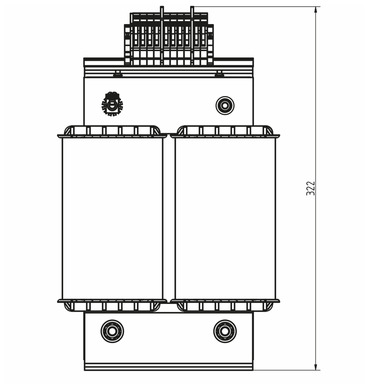

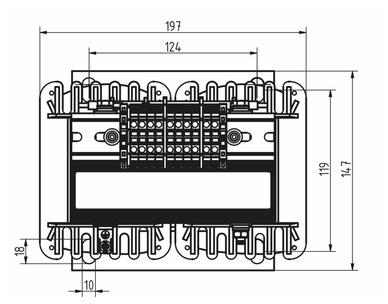

Mechanical data | Mounting data
| Mounting method | screwed |
|---|---|
| Suitable for mounting type | 4 hole screw mounting |
| Mounting dimension a | 119 mm |
| Mounting dimension b | 124 mm |
| Mounting dimension c | 10 mm |
| Height | 147 mm |
| Width | 197 mm |
| Depth | 322 mm |
| Diameter bore | 10 mm |
| Length bore | 18 mm |
Environmental characteristics | Climatic
| Ambient temperature min. | -20 °C |
|---|---|
| Ambient temperature max. | 50 °C |
| Storage temperature min. | -30 °C |
| Storage temperature max. | 80 °C |
Conformities, approvals, certificates
| Product standard | EN 61558-1, EN 61558-2-4, EN 62041 |
|---|---|
| EMC | 2014/30/EU |
Commercial data
| customs tariff number | 85043200 |
|---|---|
| GTIN | 4065909079065 |
| Packaging unit | 1 |
