RMMDU 11/24 OUTPUT RELAY  51120
Product may differ from image

RMMDU 11/24 OUTPUT RELAY

IN: 24 VDC - OUT: 250 VAC/DC / 8 A
Art.No.: 51120
Alternative product:    51130
Weight: 0.043 kg
Country of origin:  CZ
Available
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

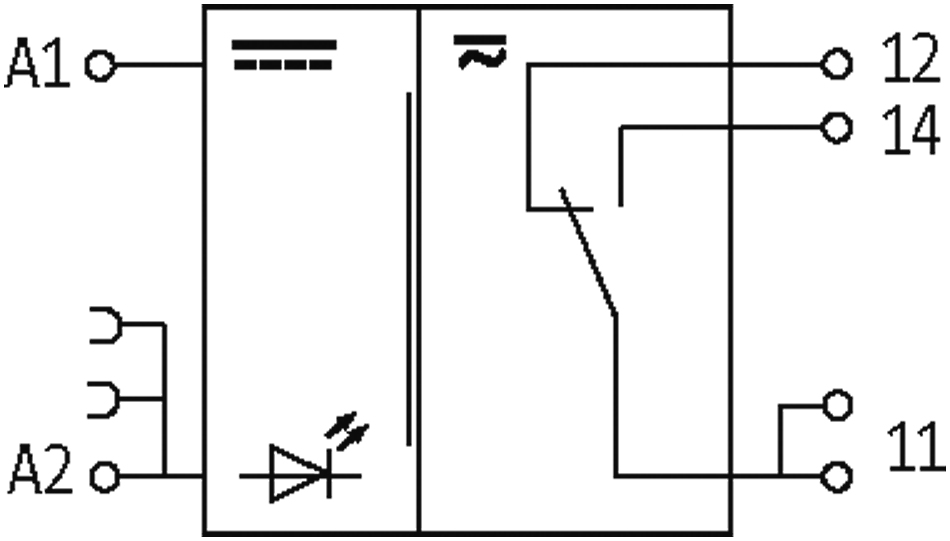

1 relay; 1 NO/NC contact
8 A
24 V DC
with minus plug link
Certificate
Certificate

Output
Min. load current 100 mA
Contact material Ag Ni
Energize/release/contact bounce time 10/15/2 ms
Switching voltage max. 250 V AC/DC
Switching frequency max. 10 Hz
Power rating (voltage dependent) max. 2000 VA/240 W
Switching current per output max. 8 A
Utilization category
AC-15 3 A (24/110/230 V AC)
AC-1 8 A (24/110/230 V AC)
DC-13 2.5 A (24 V DC); 0.4 A (110 V DC); 0.3 A (230 V DC)
Input
Plug link (supplied) Art-No. 90960
Connection voltage - current 24 V DC (21.6...26.4 V DC) - 15 mA
LED display LED (red)
General data
Mounting method DIN-rail mountable TH35 or G32 (EN 60715)
Temperature range -20...+50 °C
Test isolation voltage 5 kV; safe separation (IEC 61140/EN 61140)
Mech./ elect. life 20 000 000 switching cycles/load dependent
Dimensions H×W×D 82×12×68 mm

ECLASS-6.0 27371001
ECLASS-6.1 27371601
ECLASS-7.0 27371601
ECLASS-8.0 27371601
ECLASS-9.0 27371601
ECLASS-10.1 27371601
ECLASS-11.1 27371601
ECLASS-12.0 27371601
ETIM-5.0 EC001437

customs tariff number 85364900
GTIN 4048879027779
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Construction files: DXF 51120_dxf_x_a.zip
  • Download Construction files: STP 51120_stp_x_a.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 06-02-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 09-11-20_(3) RoHS REACh exception 6c 7cI_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 20-10-21_(1) California Prop65 No Warning_DoC_z_b.pdf
  • Download Information: Certificate of conformity UKCA 51120_1193-04.16_uk_z_a.pdf
  • Download Information: EU declaration of conformity 51120_1193-04.16_ce_z_c.pdf
  • Download Information: MTTF Report 51120_SN29500(40°C)-BerechnungV1.4_mttf_p_b.pdf
