M12 male 90° A-cod. with cable shielded

PUR 4x0.34 shielded gy 15m
Art.No.: 7000-13141-3311500
Weight: 0.954 kg
Country of origin:  DE
Out of Stock - Contact Us for Availability
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

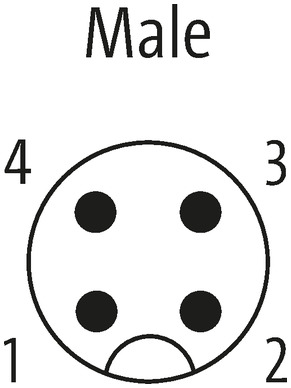

Male 90°
M12, 4-pole
shielded
A-coded
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Certificate
Certificate
Certificate
Certificate

Cable length 15 m
Technical Data
Operating voltage max. 60 V AC/DC
Rated surge voltage 1.5 kV
Operating current per contact max. 4 A
No. of poles 4
Material group IEC 60664-1, category I
Coding A-coded
LED display no
Locking of ports Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Protection IP65, IP66K, IP67 inserted and tightened (EN 60529)
Material PUR
Locking material Zinc die casting, matte nickel plated
Compression gland M12 (SW13)
General data
Standards DIN EN 61076-2-101 (M12)
Mounting method inserted, tightened
Material contact Copper alloy
Material contact surface Au
Pollution Degree 3
Stripping length (jacket) 20 mm
Temperature range -25...+85 °C, depending on cable quality
Cable
No./diameter of wires 4× 0.34 mm²
Wire isolation PVC (br, wh, bl, bk)
Outer Ø 5.9 mm ±5%
Cable number 331
Approval (cable) CE conform
Shield yes
Color jacket gray
Jacket Color gray
Temperature range (fixed) -30...+80 °C
Temperature range (mobile) -5...+70 °C
Bend radius (fixed) 10× outer Ø
Bend radius (moving) 15× outer Ø
Material jacket PUR/PVC

ECLASS-6.0 27279218
ECLASS-6.1 27279218
ECLASS-7.0 27279218
ECLASS-8.0 27279218
ECLASS-9.0 27060311
ECLASS-10.1 27060311
ECLASS-11.1 27060311
ECLASS-12.0 27060311
ETIM-5.0 EC001855
customs tariff number 85444290
EAN 4048879200578
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Construction files: STP 7000-13141_stp_x_a.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 14-11-20_(5) RoHS REACh no exception_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 04-02-23_(1) China RoHS 2 e_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA 7000-13061_08-09.19_uk_z_a.pdf
  • Download Information: EU declaration of conformity 7000-13061_08-09.19_ce_z_d.pdf
