M12-PANEL FEED THROUGH A-CODED 7000-42111-0000000
Product may differ from image

M12-PANEL FEED THROUGH A-CODED

Art.No.: 7000-42111-0000000
Weight: 0.034 kg
Country of origin:  CZ
Available
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

Control cabinet entry system

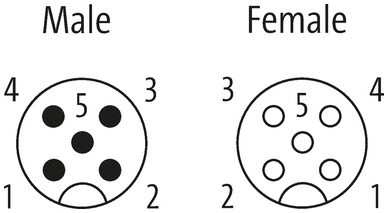

Male - female

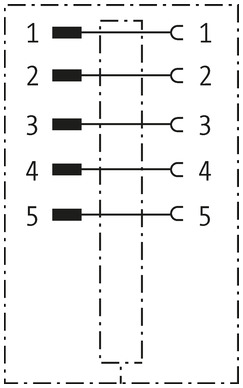

M12, 5-pole
A-coded
shielded
Certificate
Certificate
Certificate
Certificate

Technical Data
Operating voltage max. 60 V AC/DC
Operating voltage (only UL listed) 30 V AC/DC
Rated surge voltage 1.5 kV
Operating current per contact max. 4 A
Material group IEC 60664-1, category I
Coding A-coded
Locking of ports Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Protection IP65 and IP67 when plugged and screwed down (EN 60529)
Protection NEMA 3, 4, 6P (UL 50E)
Material Brass, nickel plated
General data
Pollution Degree 2
Temperature range -25...+85 °C
Mounting set M16×1.5 mm

ECLASS-6.0 27143423
ECLASS-7.0 27449001
ECLASS-8.0 27449001
ECLASS-9.0 27440321
ECLASS-10.1 27440109
ECLASS-11.1 27440109
ECLASS-12.0 27440109
ETIM-5.0 EC001855

customs tariff number 85366990
GTIN 4048879143233
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Construction files: STP 7000-42111_stp_x_c.zip
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 07-02-23_(5) China RoHS 2 50EEP_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 10-11-20_(1) RoHS REACh exception 6c_DoC_z_a.pdf
