M12 male 0° A-cod. IDC 7000-12491-0000000
Product may differ from image

M12 male 0° A-cod. IDC

4-pol., 0,14 - 0,34mm², 2,9 - 5,1mm
Art.No.: 7000-12491-0000000
Alternative product:    7000-12734-0000000
Weight: 0.02 kg
Country of origin:  DE
Available
Find similar Product
Ask question
 Recommend Product
 Product Comparison
List price per piece:
Download to Easy-Import-Export

Description

Male straight
M12, 4-pole
IDC terminals
Connection cross section: 0.14...0.34 mm²
The resistance to aggressive media should be individually tested for your application. Further details on request.
Certificate

Technical Data
Operating voltage max. 32 V AC/DC
Operating current per contact max. 4 A
Locking of ports Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Connection cross section 0.14...0.34 mm² (conductor diameter min. 0.1 mm)
Sealing range (cable Ø) 2.9...5.1 mm
Protection IP67 inserted and tightened (EN 60529)
Outer wire Ø 1.0...1.6 mm
General data
Temperature range -25...+85 °C

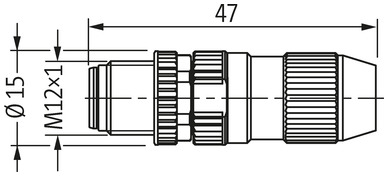

Dimensions H×W×D 43×15×15 mm

ECLASS-6.0 27279221
ECLASS-7.0 27440104
ECLASS-8.0 27440104
ECLASS-9.0 27440102
ECLASS-10.1 27440102
ECLASS-11.1 27440102
ECLASS-12.0 27440116
ETIM-5.0 EC002635
customs tariff number 85366990
EAN 4048879201834
Packaging unit 1


Data Regarding Article:
  • Download Product-PDF
  • Download Approval: UL Registered CA 7000-12491-0000000_E224242-ECBT8_urc_z_c.pdf
  • Download Approval: UL Registered US 7000-12491-0000000_E224242-ECBT2_ur_z_c.pdf
  • Download Construction files: STP 7000-12491_stp_x_a.zip
  • Download Document: Installation guide 7000-12491-0000000_ina_x_01.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 17-10-21_(6) California Prop65 Ni surface_DoC_z_b.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 04-02-23_(1) China RoHS 2 e_DoC_z_a.pdf
  • Download Information: Certificate of conformity Murrelektronik GmbH 14-11-20_(5) RoHS REACh no exception_DoC_z_a.pdf
  • Download Information: Certificate of conformity UKCA con_01-10.21_uk_z_b.pdf
  • Download Information: EU declaration of conformity con_01-10.21_ce_z_b.pdf
